제품 상세 정보:
결제 및 배송 조건:
|
재료: | 스테인리스 304 | 폭: | 0.2m 내지 4m |
---|---|---|---|
길이: | 10m 또는 주문 제작됩니다 | 와이어 직경: | 1.0mm 1.2mm 1.5mm 2.0mm |
나선형 피치: | 3mm-20mm | 막대 직경: | 4mm-20mm |
막대 피치: | 5 내지 30 밀리미터 | 사슬 피치: | 19.05 밀리미터, 25.4 밀리미터, 31.75 밀리미터, 38.1 밀리미터, 50.8 밀리미터, 76.2 밀리미터 |
하이 라이트: | 304 스테인레스 강 나선형 메시 벨트,식품 등급 나선형 메쉬 belt,4m 폭 나선형 메시 벨트 |

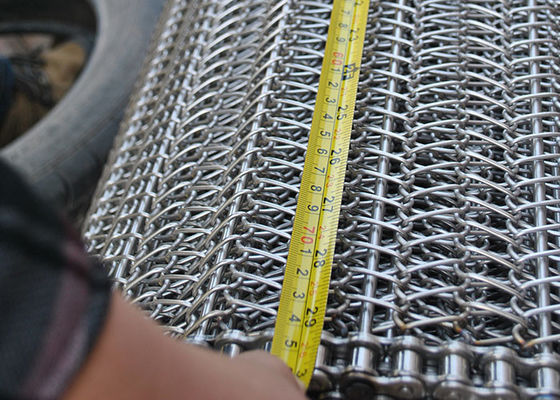

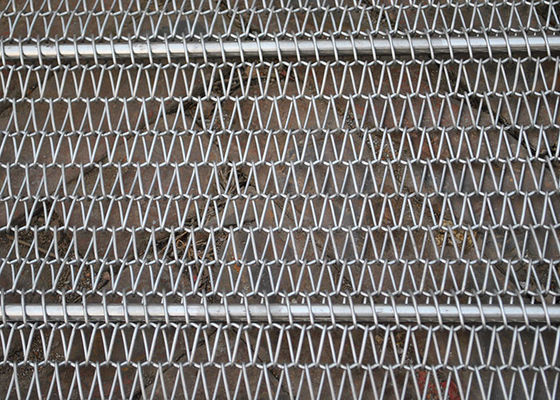

304 Stainless Steel Spiral Wire Mesh Cleaning Conveyor Belt
1. Description :
304 Stainless Steel Spiral Wire Mesh Cleaning Conveyor Belt can be customized as per your your requirement. Pls advise the details in the following drawing before making best offer. If you can not confirm them, pls advise the width, length, loading weight, the size of item which are conveyed and working temperature, so that we provide you with the available specification and price.
2. Specification :
Material | stainless steel 304 |
Width | 0.2-4.0m |
Length | customized |
Spiral wire diameter | 0.5-5.0mm(usual 1.0-3.0mm) |
Rod diameter | 4.0-12.0mm (common 6.0mm and 8.0mm) |
Spiral pitch | 3.0-20mm |
Cross wire pitch | 5.0-50mm |

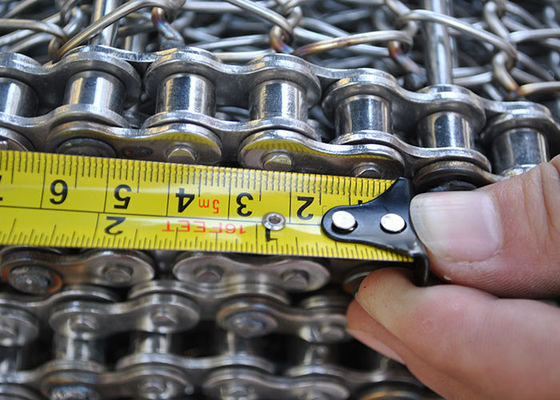

Driven type | sprockets and chains |
3. Applications :
* Food transport and processing
* Baking
* Cooling and freezing
* Steaming and drying
* Shot Blast
* Glass Annealing
* veneer dryer
4. Available materials :
1) AISI 314 (1150°C)
2) SUS 310S (1090°C)
3) SUH 330 (1150°C)
4) SUS 304 (870°C)
5) Super alloy Cr20Ni80 (1250°C) electrical furnace wire
6) SUS 321 (750°C)
7) SUS 410 (700°C)
8) SUS 430 (700°C)
9) Various metal materials as per your requirements
5. Packing & Delivery :
6. Company Information :
Anping County Comesh Filter Company, founded in 1986 in Anping China, and now is a leading manufacturer and supplier of high-quality filtration media, and offers the industry's broadest range of products:
Polyester Screen Printing Mesh
Nylon Filter Mesh
Polyester Mesh Belt
Wire Mesh Conveyor Belt
Stainless Steel Mesh
Copper / Brass Wire Mesh
Chainmail Scrubber
Decorative Mesh
Metal Basket/Tray/Bowl/Glove
Filter Strainer Cylinder / Tube / Pipe / Disc /Sieve
