제품 상세 정보:
결제 및 배송 조건:
|
상품 이름: | 래핑한 모서리 스테인레스 강 304 금속 실 방직 그물 스크린 | 애플리케이션: | 여과하면서,, 체질하, 보호를 지키기 |
---|---|---|---|
뜨거운 수색: | 스테인리스 철망사 | 제직물 타입: | 주름을 잡는 평직, 능직, 네덜란드 제직물 |
길이: | 30-70m/roll | 폭: | 1m, 1.22m |
실 직경: | 0.02-2mm | 메쉬: | 1*1-635*635mesh/inch |
하이 라이트: | 1X30M 304 스테인레스 스틸 메시 스크린,금속 실 방직 그물 스크린 SGS,1X30M 금속 실 방직 그물 스크린 |

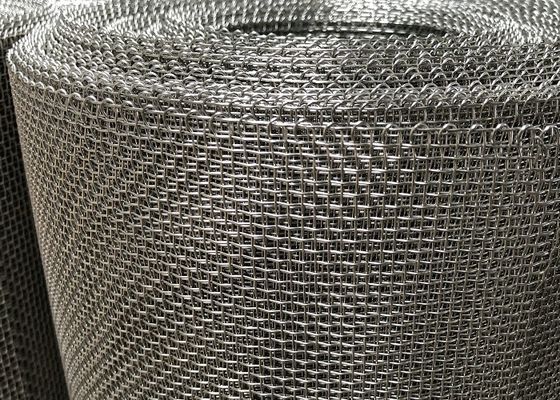

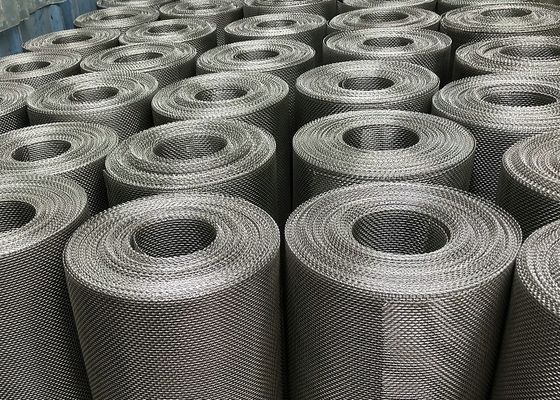

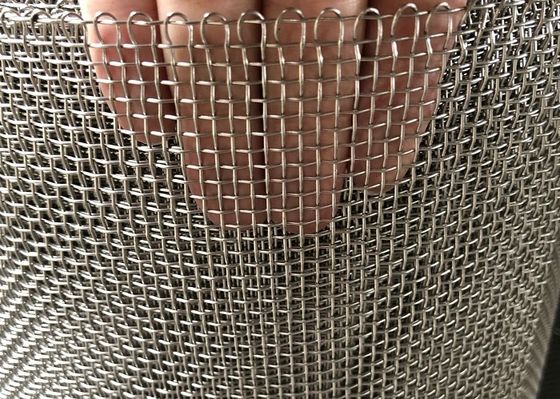

래핑한 모서리 스테인레스 강 304 금속 실 방직 그물 스크린
개시는 케케묵거나 직사각형이거나 특별한 개시일 수 있습니다.정상적으로, 이런 종류의 와이어 메쉬는 표준 개구 사이즈, 획일적 개시, 좋은 투과도와 고강도를 가지고 있습니다.원료는 적용의 다른 환경에 따라 선택되어야 합니다.
crimped woven wire mesh refer to coarse wire mesh.the wire diameter of crimped mesh is bigger than that of stainless steel fine woven mesh,so crimped wire mesh if of high strength,can used as protection fence,coal mine sieveing screen and wire mesh for hoggery.
기재 :
재료 | SUS304 316 316L,304L,201, 탄소강 |
weave type | 평직, 능직, 네덜란드 제직물, 반대 네덜란드 제직물 |
Mesh/inch | 1*1-635*635mesh/inch |
wire diameter | Min diameter is 0.023mm 0.02-2mm |
aperture size | 0.02-23.37micron |
hole shape | square,rectangle,special |
Specifications :
1. Consistent pore size distribution guarantees a significantly higher particle separation
2. material:SUS304 316 316L,316L is mainly designed for marine aquaculture and pharmacy.
3. mesh count per liner inch:2-635mesh
4. wire thread can be from 0.08” to 0.0008”
5.width:usually 40” and 48”,special can be ordered
Applications:
1. Chemical filtering
2. Food and beverage for food filtering
3. Mining,main use coarse mesh,such as crimped wire mesh
4. Refining,mail use stainless steel fine mesh
5. Healthcare
6. Architectural ,advise crimped wire mesh and coarse wire mesh used as protection mesh
7. Acoustic,headphone net
8. Automotive
9. Security,PVC coated stainless steel mesh 11mesh.
10. Pharmaceutical: food grade stainless steel fine mesh
11. Quarry,advise carbon steel mesh
12. Electrical Cigarette:super thin stainless steel metal mesh fabric
13.Long work time.
