304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

브랜드 이름:	COMESH
모델 번호:	CM-CB2511201
모크:	2m
가격:	USD35-55 per meter
지불 조건:	D/A,D/P,T/T,웨스턴 유니온,
공급 능력:	주당 500m

자세한 정보

제품 설명

자세한 정보

원래 장소:

중국

인증:

FDA

재료:

스테인레스 스틸 304

너비:

800mm 또는 맞춤형

길이:

롤당 6m 또는 맞춤형

와이어 직경:

1.5 mm 또는 사용자 정의

로드 직경:

6mm 또는 맞춤형

나선형 피치:

8mm 또는 사용자 정의

체인 피치:

38.1mm 또는 맞춤형

포장 세부 사항:

PP 자루 내부와 그리고 나서 나무로 된 케이스 바깥쪽

강조하다:

304 stainless steel conveyor belt

chain driven freezer conveyor belt

balance weave spiral wire mesh

제품 설명

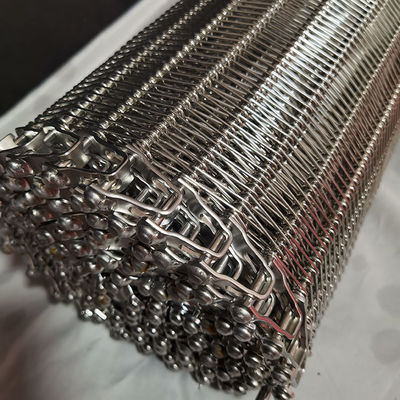

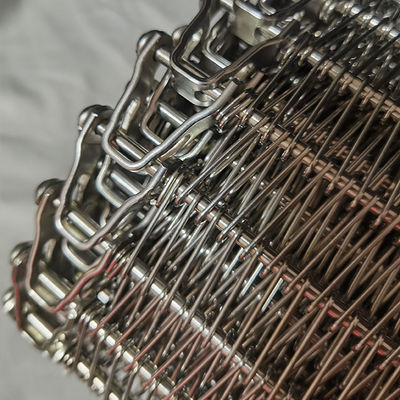

304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

This kind of Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt is especially designed for spiral or round conveyor as well as straight-running conveyor. With the ability to side flex, the belt can also be used for conveyors arranged to go around obstacles.The flexible rod belt is popular in the food industries, including cooling, cooking or freezing products.

Product Specifications

Material	Stainless steel 304, or customized
Width	800 mm, or customized
Length	6 m per roll, or customized
Wire Diameter	1.5 mm, or customized
Rod diameter	6 mm, or customized
Spiral pitch	8 mm, or customized
Chain pitch	38.1 mm, or customized

Available Materials

1) AISI 314 (1150°C)

2) SUS 310S (1090°C)

3) SUS 330 (1150°C)

4) SUS 304 (400°C)

5) SUS 316 (1000°C)

6) Super alloy Cr20Ni80 (1250°C) electrical furnace wire

7) SUS 321 (750°C)

8) SUS 410 (700°C)

9) SUS 430 (700°C)

10) Various metal materials as per your requirements

Key Features

Material: High-quality stainless steel construction provides excellent resistance to corrosion and high temperatures
Design: Spiral wire mesh offers flexibility and strength for transporting various products
Chain Driven: Smooth and reliable movement along the conveyor path
Customization: Available in various sizes, wire diameters, and mesh configurations

Applications
